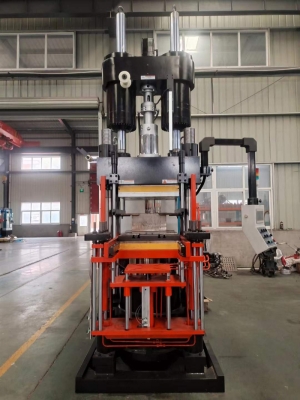

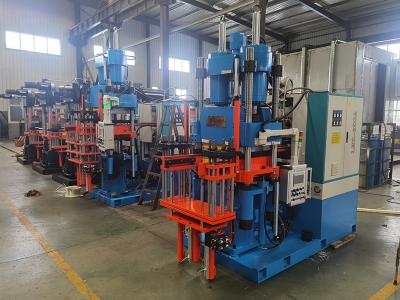

FIFO Rubber Injection Machine

FIFO rubber injection machine is a rubber processing equipment that operates on the FIFO (first in, first out) principle. This means that when injecting rubber, the rubber material that enters the machine first will be injected first, followed by the subsequent materials. This injection machine is designed to ensure the order in which rubber materials are used to improve production efficiency and material utilization.

Contact Now E-Mail Telephone

Product Details

The advantages of FIFO rubber injection machine are as follows:

Efficient production: The FIFO principle is adopted to ensure the order of use of rubber materials and improve production efficiency.
Reduce material waste: Through a precise control system, accurate injection volume and injection time are ensured, and material waste is minimized.
Versatility: Can be used to produce a variety of rubber products and has wide adaptability.
Strong stability: Equipped with an independent feeding system, the material input is uniform and stable, improving product stability and consistency.
High reliability: Using advanced technology and high-quality materials to ensure the reliability and durability of the equipment.
Easy to operate: easy to operate, easy to master and use, reducing labor costs.
Energy saving and environmental protection: Use advanced energy-saving technology and renewable energy to reduce energy consumption and be environmentally friendly.
High-quality products: High-quality rubber products are produced through precise injection control and stable material supply.

Specifications

项目 ltem 型号 Size	LBZ-100A LBZ-100E	LBZ-160A LBZ-160E	LBZ-200A LBZ-200E	LBZ-300A LBZ-300E	LBZ-400A LBZ-400E	LBZ-550A LBZ-550E	LBZ-650A LBZ-650E
注射容积（cm³) Injection volume	1500	1500	2000	3000	4000	5000	6000
锁模力（KN） CI amping force	1000	1600	2000	3000	4000	5500	6500
热板尺寸（mm) Heating plate dim	450x450	500x500	550x550	700x600	800x700	900x800	1000x900
开模行程（mm） Mould opening stroke	400	450	500	600	600	650	650
最小模厚（mm） Min. mould thickness	60	60	80	160	160	250	250
装机容量（kw） Total power	23	23	30	40	40	60	60
机器尺寸(mm) （长×宽×高） Machine dim (LxWxH)	2.7x1.6x3	2.7x1.6x3.2	3x2.3×4	3.4x2.6×4.5	3.5×2.7×4.6	3.6×2.8x4.8	3.8×2.9×5.2
整机重量（Ton） Total weight	4.5	5.5	6.5	10	13	18	23
