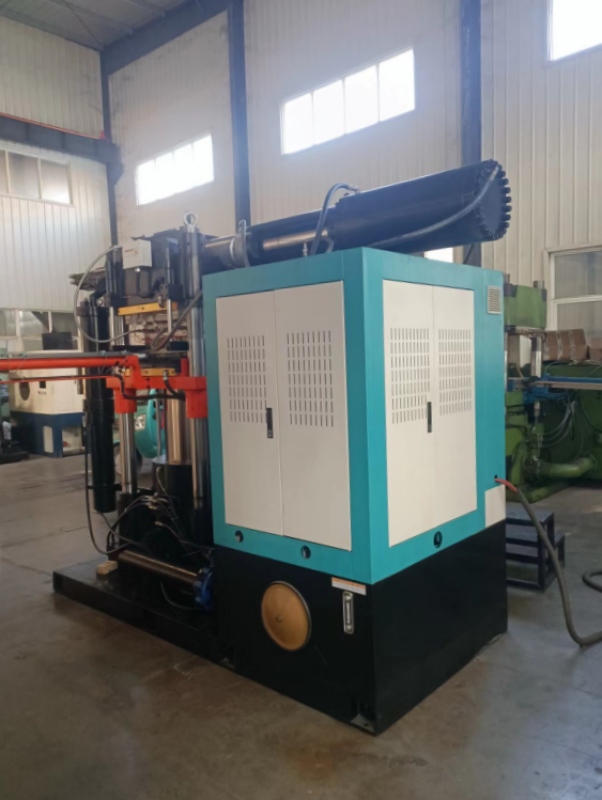

Flatbed Vulcanizing Machine

A flatbed vulcanizing machine, also known as a flatbed press or a flat vulcanizer, is a specialized machine used for the vulcanization of rubber products. Vulcanization is a process that chemically bonds rubber materials using heat and pressure, resulting in increased strength, elasticity, and durability.

Contact Now E-Mail Telephone
Product Details

A flatbed vulcanizing machine, also known as a flatbed press or a flat vulcanizer, is a specialized machine used for the vulcanization of rubber products. Vulcanization is a process that chemically bonds rubber materials using heat and pressure, resulting in increased strength, elasticity, and durability.

Here are the key components and features of a flatbed vulcanizing machine:

  1. Flatbed Platen: The machine consists of a flat, heated platen on which the rubber product is placed for vulcanization. The platen is typically made of a sturdy material, such as steel, and is heated using either steam or electric heating elements throughout its surface.

  2. Hydraulic System: A hydraulic system is employed to apply pressure to the rubber product during vulcanization. It generally comprises hydraulic cylinders, a hydraulic pump, valves, and pressure controls. The pressure can be adjusted based on the specific requirements of the rubber product being vulcanized.

  3. Control Panel: The control panel allows the operator to set and monitor various parameters of the vulcanization process, such as temperature, pressure, and time. It may include digital displays, buttons, switches, and alarms to ensure proper control and safety.

  4. Clamping System: To secure the rubber product firmly between the platens, a clamping mechanism is provided. The clamping system ensures proper alignment and even distribution of pressure and heat during vulcanization. It may consist of manual or automatic clamping mechanisms, depending on the machine design.

  5. Cooling System: After the vulcanization process is complete, the rubber product needs to cool down gradually. Some flatbed vulcanizing machines have integrated cooling systems, including water or air cooling, to expedite the cooling process and enhance productivity.

  6. Safety Features: Flatbed vulcanizing machines are equipped with safety features such as emergency stop buttons, safety interlocks, temperature and pressure sensors, and alarms to ensure operator safety and prevent any potential hazards.

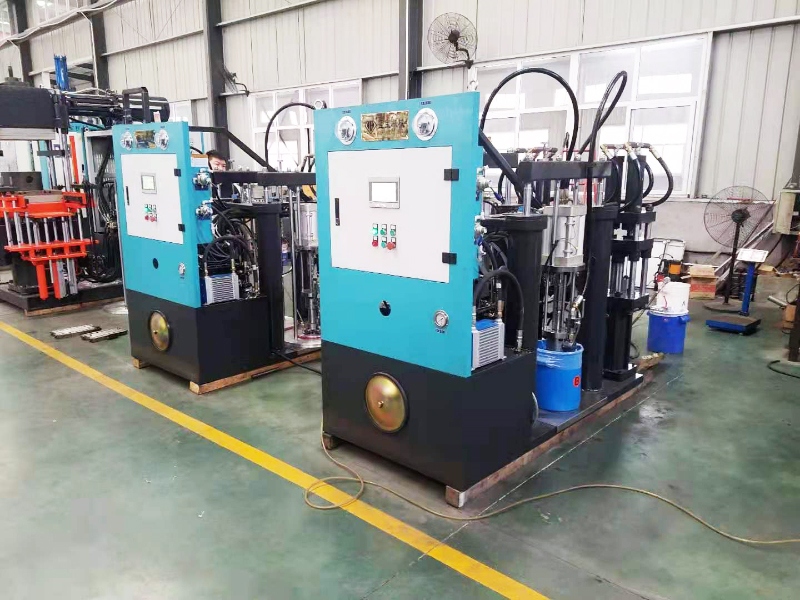

Flatbed Vulcanizing Machine

These machines are widely used in various industries, including automotive, aerospace, construction, and manufacturing, where rubber products, such as conveyor belts, gaskets, seals, and hoses, require high-quality bonding and enhanced properties through vulcanization.

型号Size
项目ltem

LBL-50F

LBL-100P

LBL-160P

LBL-200P

LBL-200V

LBL-300V

锁模力(KN
CI amping force

500

1000

1600

2000

2000

3000

热板尺寸(mm
Heating plate dim

400x400

450x450

500x500

550x550

500x500

600x600

开模行程(mm)
Mould opening stroke

300

400

450

500

300

250

最小模厚(mm
Min, mould thickness

60

60

60

60

50

50

装机容量(kw
Total power

12

18

20

20

42

51

机器尺寸(mm
(长××)
Machine dim
(LxWxH)

1.4x1x1.7

2.1x1.8x2.1

2x1.9x 2.4

2.2x2x3

3.4x2.1x2.5

3.4x2.6×2.6

机器重量(Ton)
Total weight

3

4

4.5

5.5

10

14
