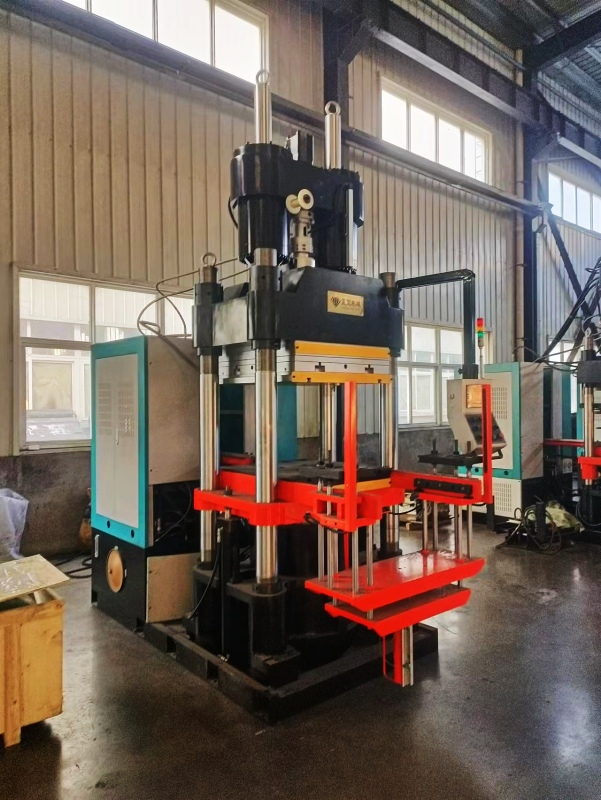

Hydraulic Plate Curing Press

Hydraulic plate curing presses offer precise control over pressure and temperature, ensuring consistent and high-quality curing of rubber materials. They are commonly used in industries such as automotive, construction, aerospace, and manufacturing of rubber components and products. The size and capacity of hydraulic plate curing presses can vary depending on the specific application and production requirements.

Contact Now E-Mail Telephone
Product Details

A hydraulic plate curing press is a specific type of rubber molding equipment used for the curing or vulcanization process of rubber plates or sheets. It is designed to apply controlled pressure and heat to the rubber material to achieve the desired physical properties.

Here's how a hydraulic plate curing press typically works:

  1. Preparing the Rubber Material: Rubber plates or sheets are cut or pre-formed to the desired size and shape before being placed in the curing press.

  2. Loading the Material: The rubber material is loaded onto the lower platen of the curing press.

  3. Closing the Press: The hydraulic system is activated to bring the upper platen down, closing the press and applying pressure to the rubber material.

  4. Applying Heat: Heat is then supplied to the platens through electric heaters or steam. The temperature and duration of the curing process are predetermined based on the type of rubber material and desired properties.

  5. Curing the Rubber Material: The combined pressure and heat activate the curing agents in the rubber material, causing it to crosslink and solidify. This process gives the rubber its final properties, including improved strength, elasticity, and chemical resistance.

  6. Cooling and Unloading: After the curing process is complete, the hydraulic press is opened, and the cured rubber plate or sheet is removed from the platen. It is typically allowed to cool before further processing or finishing.

Hydraulic plate curing presses offer precise control over pressure and temperature, ensuring consistent and high-quality curing of rubber materials. They are commonly used in industries such as automotive, construction, aerospace, and manufacturing of rubber components and products. The size and capacity of hydraulic plate curing presses can vary depending on the specific application and production requirements.

Hydraulic Plate Curing Press

型号Size
项目ltem

LBL-50F

LBL-100P

LBL-160P

LBL-200P

LBL-200V

LBL-300V

锁模力(KN
CI amping force

500

1000

1600

2000

2000

3000

热板尺寸(mm
Heating plate dim

400x400

450x450

500x500

550x550

500x500

600x600

开模行程(mm)
Mould opening stroke

300

400

450

500

300

250

最小模厚(mm
Min, mould thickness

60

60

60

60

50

50

装机容量(kw
Total power

12

18

20

20

42

51

机器尺寸(mm
(长××)
Machine dim
(LxWxH)

1.4x1x1.7

2.1x1.8x2.1

2x1.9x 2.4

2.2x2x3

3.4x2.1x2.5

3.4x2.6×2.6

机器重量(Ton)
Total weight

3

4

4.5

5.5

10

14
