P Series Plate Vulcanizer

Various clamping configurations available.

Economical equipment for the production of common rubber products.

Contact Now E-Mail Telephone

Product Details

Various clamping configurations available.

Economical equipment for the production of common rubber products.

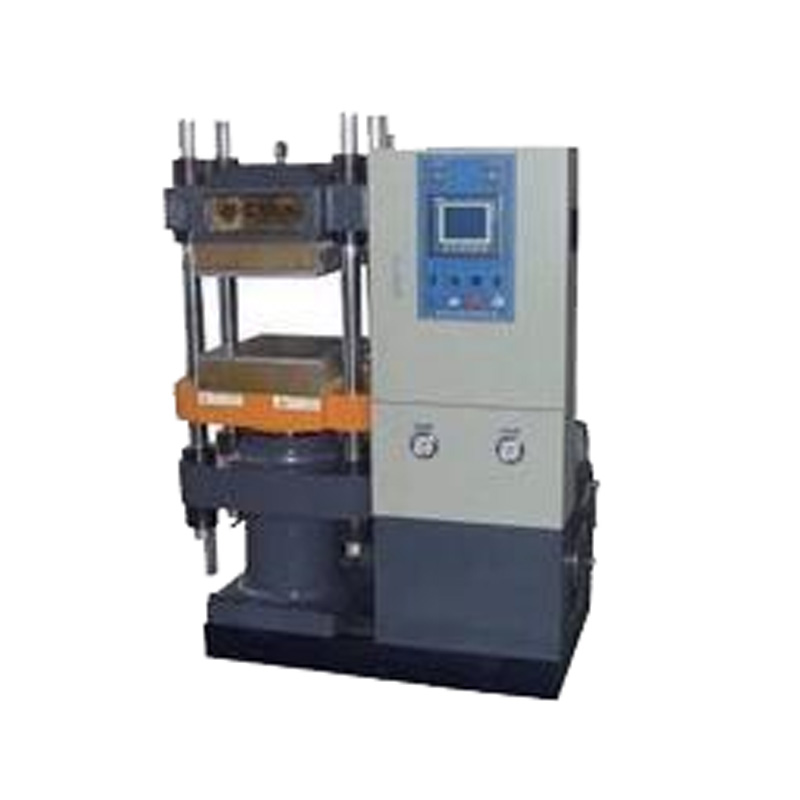

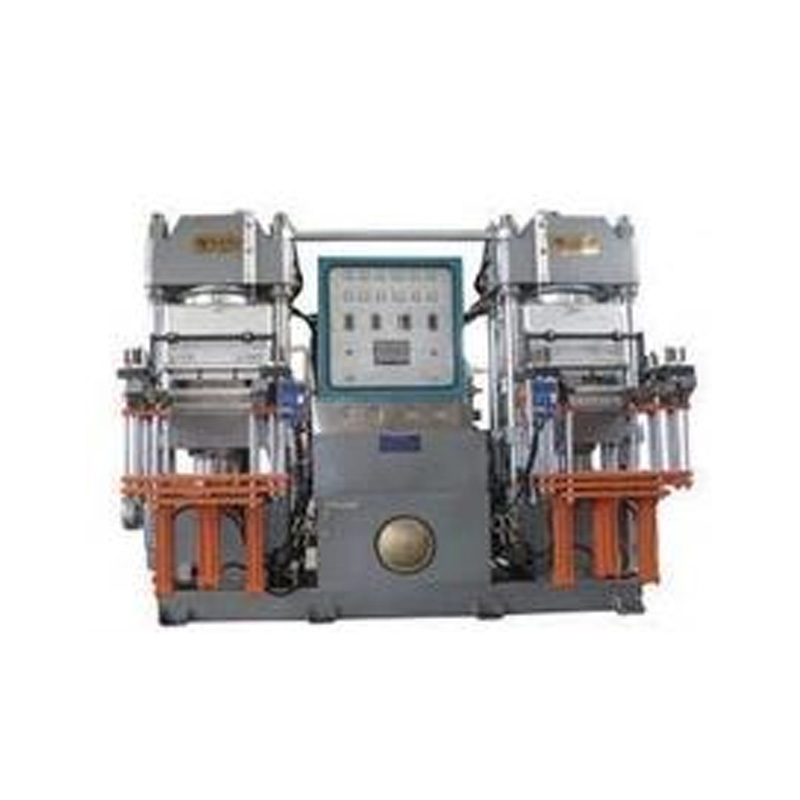

P Series Plate Vulcanizer

型号Size 项目Item	LBL-50P	LBL-100P	LBL-160P	LBL-200P	LBL-200V	LBL-300V
锁模力(KN) Cl amping force	500	1000	1600	2000	2000	3000
热板尺寸(mm) Heating plate dim	400x400	450x450	500x500	550x550	500x500	600x600
开模行程(mm) Mould opening stroke	300	400	450	500	300	250
最小模厚(mm) Min. mould thickness	60	60	60	60	50	50
装机容量(kw) Total power	12	18	20	20	42	51
机器尺寸(mm) (长X宽X高) Machine dim (LxWxH)	1.4x1x1.7	2.1x1.8x2.1	2x1.9×2.4	2.2x2x3	3.4x2.1x2.5	3.4x2.6x2.6
机器重量(Ton) otal weight	3	4	4.5	5.5	10	14
