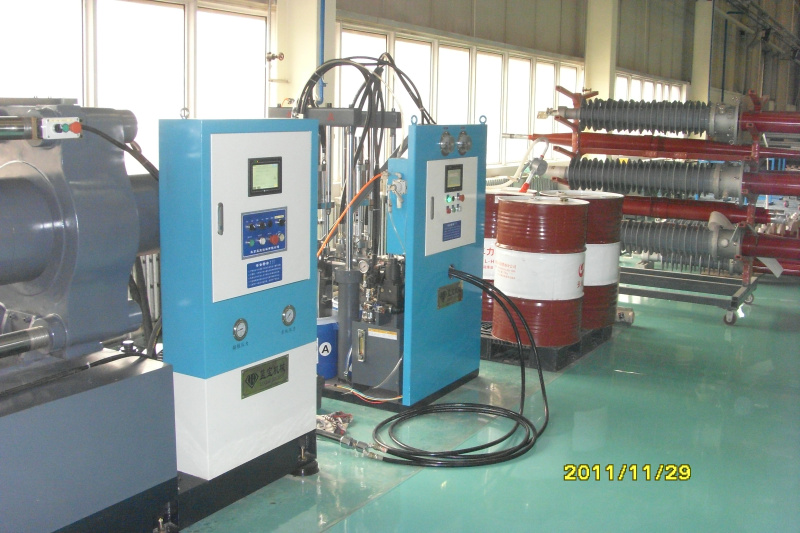

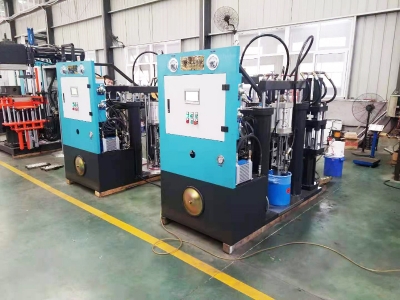

Rubber Vulcanization Molding Machine

A rubber vulcanization molding machine is a specific type of machine used for the vulcanization of rubber products. Vulcanization is a chemical process that converts natural or synthetic rubber materials into a more durable and stable form by crosslinking the polymer chains.

Contact Now E-Mail Telephone
Product Details

A rubber vulcanization molding machine is a specific type of machine used for the vulcanization of rubber products. Vulcanization is a chemical process that converts natural or synthetic rubber materials into a more durable and stable form by crosslinking the polymer chains.

Here are the key components and functions of a rubber vulcanization molding machine:

  1. Heating System: The machine is equipped with a heating system that provides the necessary heat for the vulcanization process. This can be achieved through electric heating elements, steam, or hot oil circulation, depending on the specific design of the machine.

  2. Pressing System: The machine includes a pressing system that applies pressure to the rubber material during the vulcanization process. This ensures proper contact between the rubber compound and the mold surface, facilitating the crosslinking reaction.

  3. Mold Design and Preparation: A rubber vulcanization molding machine utilizes a mold designed specifically for the desired shape and size of the rubber product. The mold is made of metal and is often coated with a release agent to prevent the rubber from sticking. The mold is prepared and loaded onto the machine before the vulcanization process begins.

  4. Vulcanization Cycle Control: The machine has a control system that regulates various parameters, such as temperature and pressure, during the vulcanization cycle. This control system ensures that the rubber material is exposed to the necessary heat and pressure for the required amount of time, allowing the crosslinking reaction to occur and the rubber to undergo vulcanization.

  5. Cooling and Demolding: Once the vulcanization process is complete, the machine initiates a cooling cycle to rapidly reduce the temperature of the molded rubber product. Once the rubber has cooled down sufficiently, the machine opens the mold and facilitates the demolding of the finished product.

Rubber Vulcanization Molding Machine

These machines are commonly used in industries such as automotive, aerospace, and construction, where durable rubber products are required. The vulcanization process increases the strength, elasticity, and resistance to heat, chemicals, and aging of the rubber material, making it suitable for a wide range of applications. The rubber vulcanization molding machine allows for precise control over the vulcanization process, ensuring consistent and high-quality rubber products.

型号Size
项目ltem

LBL-50F

LBL-100P

LBL-160P

LBL-200P

LBL-200V

LBL-300V

锁模力(KN
CI amping force

500

1000

1600

2000

2000

3000

热板尺寸(mm
Heating plate dim

400x400

450x450

500x500

550x550

500x500

600x600

开模行程(mm)
Mould opening stroke

300

400

450

500

300

250

最小模厚(mm
Min, mould thickness

60

60

60

60

50

50

装机容量(kw
Total power

12

18

20

20

42

51

机器尺寸(mm
(长××)
Machine dim
(LxWxH)

1.4x1x1.7

2.1x1.8x2.1

2x1.9x 2.4

2.2x2x3

3.4x2.1x2.5

3.4x2.6×2.6

机器重量(Ton)
Total weight

3

4

4.5

5.5

10

14
