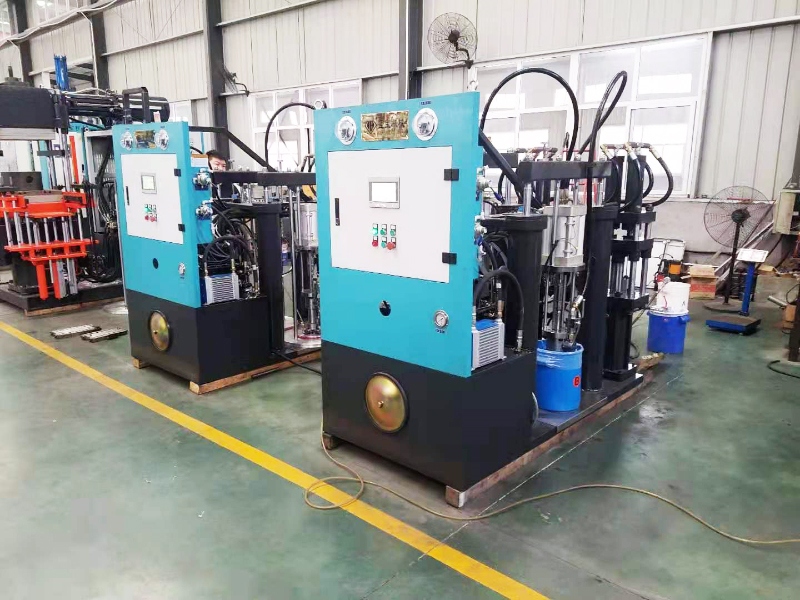

Vulcanization Molding Machine

A vulcanization molding machine, also known as a vulcanizing press or rubber molding press, is a specialized machine used in the rubber industry for the production of molded rubber products. It combines heat, pressure, and time to transform raw rubber materials into cured rubber products with the desired shape and properties.

Contact Now E-Mail Telephone
Product Details

A vulcanization molding machine, also known as a vulcanizing press or rubber molding press, is a specialized machine used in the rubber industry for the production of molded rubber products. It combines heat, pressure, and time to transform raw rubber materials into cured rubber products with the desired shape and properties.

Here are some key features and functions of a vulcanization molding machine:

  1. Heat and Pressure Application: The machine applies both heat and pressure to the raw rubber material placed in a mold cavity to facilitate the vulcanization process. Heat is typically generated through electric heaters or steam, while pressure is exerted using hydraulic cylinders or mechanical systems.

  2. Temperature and Time Control: The machine allows precise control over temperature and curing time, ensuring optimal vulcanization of the rubber. These parameters vary depending on the specific rubber compound and product requirements.

  3. Mold Handling: The machine consists of a top and bottom mold, which are usually made of metal. It is designed to accommodate various mold sizes and shapes to produce different rubber products. The mold is securely locked during the curing process to prevent any leakage or deformation.

  4. Hydraulic System: Many vulcanization molding machines utilize hydraulics to apply and regulate the pressure during the curing process. Hydraulic cylinders or pumps generate and control the force required for proper curing and mold closing.

  5. Safety Features: Vulcanization molding machines have built-in safety mechanisms to protect operators from accidents. These features may include emergency stop buttons, safety interlocks, and protective guards around moving parts.

  6. Control Panel: The machine is equipped with a control panel or interface that allows operators to set and adjust various parameters, such as temperature, pressure, curing time, and cycle count. This enables precise control over the vulcanization process.

It's important to note that the specific features and functionalities of a vulcanization molding machine may vary depending on the manufacturer and model. Operators should refer to the manufacturer's instructions and guidelines for proper usage, safety precautions, and maintenance of the machine.

Vulcanization Molding Machine

型号Size
项目ltem

LBL-50F

LBL-100P

LBL-160P

LBL-200P

LBL-200V

LBL-300V

锁模力(KN
CI amping force

500

1000

1600

2000

2000

3000

热板尺寸(mm
Heating plate dim

400x400

450x450

500x500

550x550

500x500

600x600

开模行程(mm)
Mould opening stroke

300

400

450

500

300

250

最小模厚(mm
Min, mould thickness

60

60

60

60

50

50

装机容量(kw
Total power

12

18

20

20

42

51

机器尺寸(mm
(长××)
Machine dim
(LxWxH)

1.4x1x1.7

2.1x1.8x2.1

2x1.9x 2.4

2.2x2x3

3.4x2.1x2.5

3.4x2.6×2.6

机器重量(Ton)
Total weight

3

4

4.5

5.5

10

14
