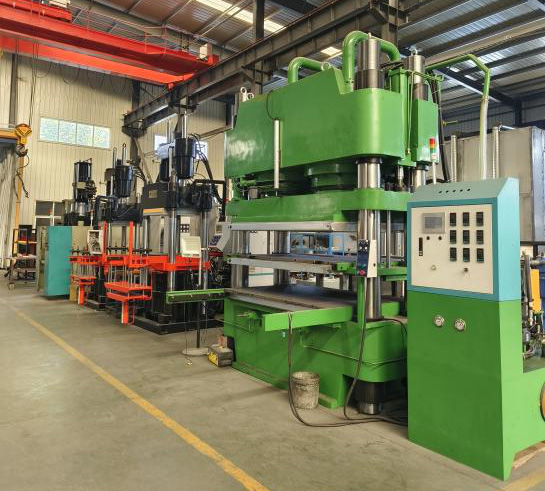

Vulcanizing Machine

A vulcanizing machine is a piece of equipment used to vulcanize or cure rubber products. Vulcanization is a process in which raw rubber or rubber compounds are transformed into a more durable and stable material by applying heat and pressure. The vulcanizing machine utilizes a combination of heat and pressure to achieve this transformation. The machine typically consists of a heating element, a pressure mechanism, and a chamber or mold to contain the rubber product during the vulcanization process. The time and temperature required for vulcanization depend on the type and thickness of the rubber material. Vulcanizing machines are commonly used in industries such as automotive, aerospace, footwear, and manufacturing of rubber components.

Contact Now E-Mail Telephone
Product Details

 Here are some details about a typical vulcanizing machine:

  1. Type: There are different types of vulcanizing machines available, including plate vulcanizing press, tire vulcanizing press, and tube vulcanizing press. Each type is designed for specific applications.

  2. Structure: A vulcanizing machine typically consists of a frame, hydraulic system, heating system, and control panel. The frame provides the structure and stability, while the hydraulic system generates the necessary pressure for vulcanization. The heating system includes heating plates or chambers to heat the rubber material, and the control panel allows for setting and monitoring the temperature, pressure, and time parameters.

  3. Capacity: The capacity of a vulcanizing machine can vary depending on the specific model and application requirements. It can range from small machines for laboratory or prototype use to large industrial-grade machines for mass production.

  4. Temperature and Pressure Range: The temperature and pressure range of a vulcanizing machine will depend on the specific application and requirements. Generally, the temperature can range from around 100°C to 200°C (212°F to 392°F), and the pressure can range from a few tons to several hundred tons.

  5. Safety Features: Vulcanizing machines are equipped with various safety features to ensure operator safety and prevent accidents. These features may include emergency stop buttons, safety interlocks, and safety guards.

  6. Application: Vulcanizing machines are widely used in the rubber industry for manufacturing various rubber products, including tires, conveyor belts, rubber mats, gaskets, O-rings, and other molded rubber parts.

  7. Customization: Some manufacturers offer customization options for vulcanizing machines to meet specific customer requirements, such as size, heating method, pressure capacity, and control system.

Vulcanizing Machine

It's important to note that specific details may vary depending on the manufacturer and model of the vulcanizing machine.

型号Size
项目ltem

LBL-50F

LBL-100P

LBL-160P

LBL-200P

LBL-200V

LBL-300V

锁模力(KN
CI amping force

500

1000

1600

2000

2000

3000

热板尺寸(mm
Heating plate dim

400x400

450x450

500x500

550x550

500x500

600x600

开模行程(mm)
Mould opening stroke

300

400

450

500

300

250

最小模厚(mm
Min, mould thickness

60

60

60

60

50

50

装机容量(kw
Total power

12

18

20

20

42

51

机器尺寸(mm
(长××)
Machine dim
(LxWxH)

1.4x1x1.7

2.1x1.8x2.1

2x1.9x 2.4

2.2x2x3

3.4x2.1x2.5

3.4x2.6×2.6

机器重量(Ton)
Total weight

3

4

4.5

5.5

10

14
