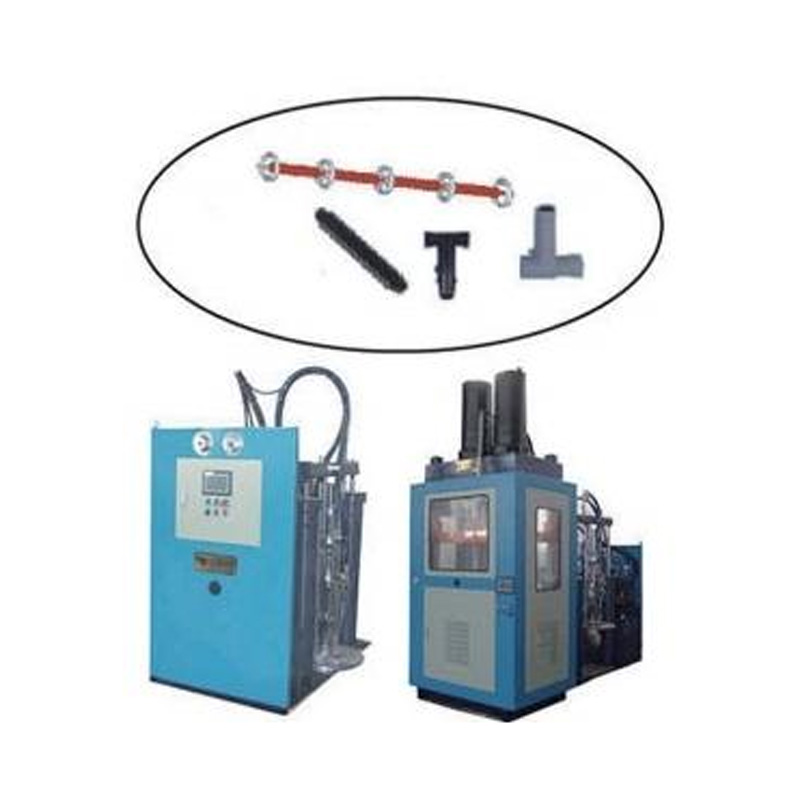

P Series Liquid Silicone Pump Feeder
Machine Features
Adopt the principle of line reciprocate plange piston structure, ejection of
compact in double direction. The closing system complement oil automatically, insuring two sets of gums
proportional precise. Alarm function completely, avoid creation waster. The statie ixer is very advanced, mixingeffective.
Machine Features
Adopt the principle of line reciprocate plange piston structure, ejection of
compact in double direction. The closing system complement oil automatically, insuring two sets of gums
proportional precise. Alarm function completely, avoid creation waster. The statie ixer is very advanced, mixingeffective.
型号Size 项目Item | LBP-20L | LBP-200L | LBG-4L | LBG-6L | LBG-10L | LBG-20L | LBG-40L |
注射容积(L) Injection volume | 无 | 无 | 4 | 6 | 10 | 20 | 40 |
胶料输出压(Mpa) Materigl output pressure | 0-25 | 0-25 | 0-25 | 0-25 | 0-25 | 0-25 | 0-25 |
胶料输出速度 (L/min) Average material output | 0-2 | 0-4 | 0-6 | 0-6 | 0-6 | 0-6 | 0-6 |
科简容积(L) The mater ial drum volume | 20 | 200/20 | 200/20 | 200/20 | 200/20 | 200/20 | 200/20 |
料筒内径(mm) The mater ial drum diameter | 280 | 571.5/280 | 571.5/280 | 571.5/280 | 571.5/280 | 571.5/280 | 571.5/280 |
装机容量(kw) Total power | 3 | 3 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 |
机器尺寸(mm (长x宽x高) Machine dim (LxWxH) | 1.1×0.8x1.7 | 1.6x1.4x1.8 | 2.2x1×2.3 | 2.7x1.5x2.3 | 2.7x1.3x2.7 | 1.9x1.3x3 | 3.1×1.5×3.4 |
