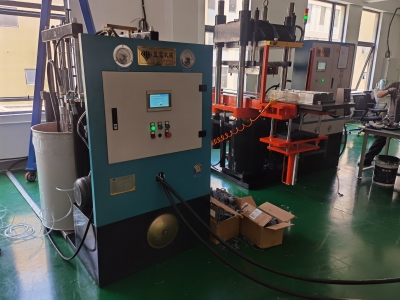

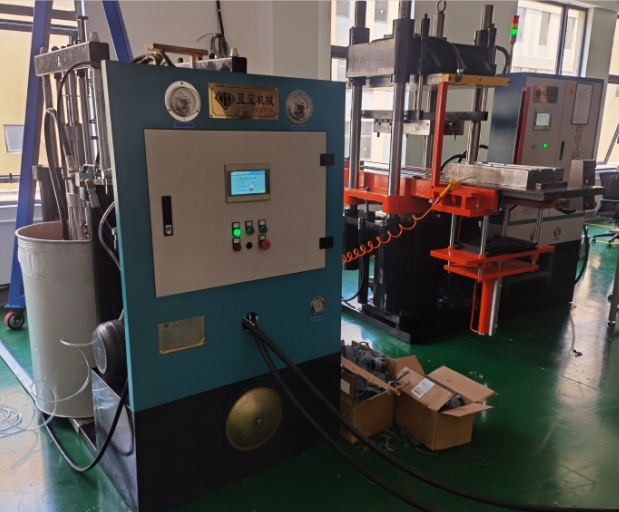

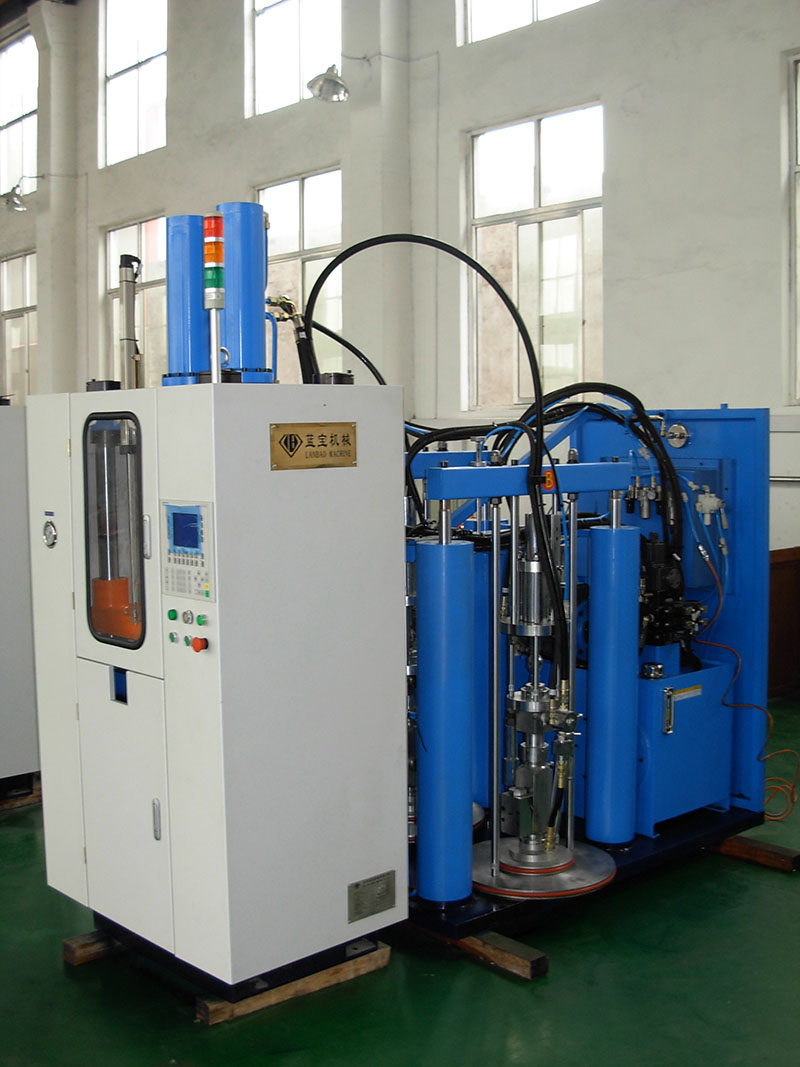

Rubber Injection Molding Machine

The main components of a rubber injection molding machine include an injection unit, a transfer unit, a heating and curing system, a clamping unit, and a control system.

The injection unit is responsible for melting and injecting the rubber material into the mold cavity. It typically consists of a screw mechanism or a plunger that moves the material into the mold under high pressure. The injection unit also ensures that the rubber is properly mixed and homogenized before injection.

The transfer unit is used to transfer the rubber material from the injection unit to the mold. It can be a piston or hydraulic system that controls the movement of the material.

The heating and curing system is used to apply heat and pressure to the mold in order to cure the rubber material. It ensures that the rubber is vulcanized and solidified to form the final product.

The clamping unit holds the mold in place during the injection and curing process. It applies sufficient clamping force to keep the mold closed and prevent any material leakage.

The control system monitors and controls various parameters of the molding process, such as temperature, pressure, and time. It allows the operator to set and adjust these parameters based on the specific requirements of the rubber product.

Rubber injection molding machines are commonly used in industries such as automotive, aerospace, industrial manufacturing, and consumer goods to produce products such as rubber seals, gaskets, O-rings, rubber tires, and rubber components for various applications.

These machines offer advantages such as high precision, consistency, cost-effectiveness, and the ability to produce complex rubber products with tight tolerances. They are capable of producing rubber parts with excellent mechanical properties, durability, and resistance to wear, heat, and chemicals.
