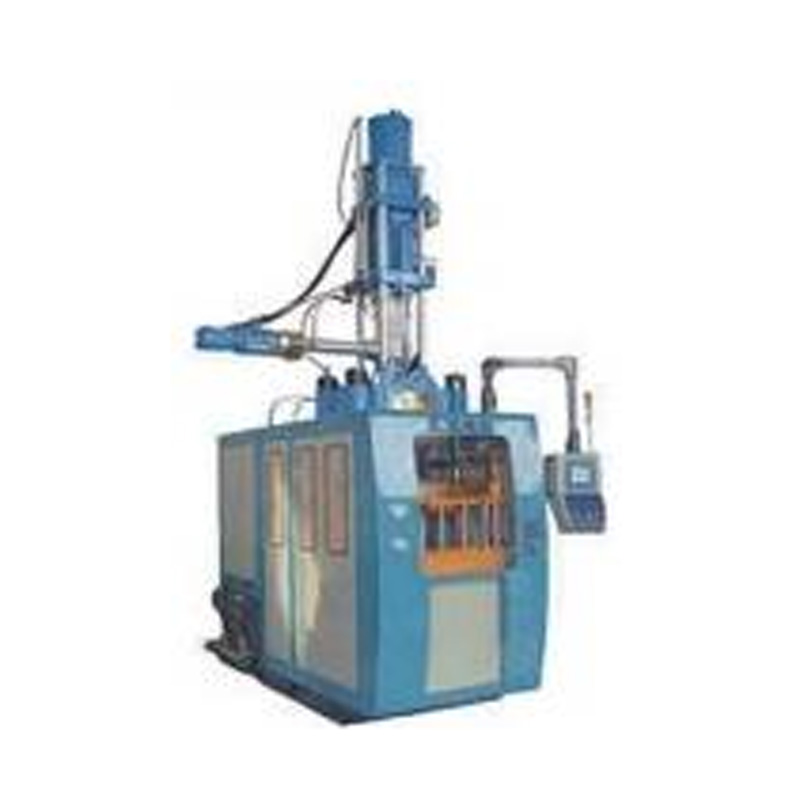

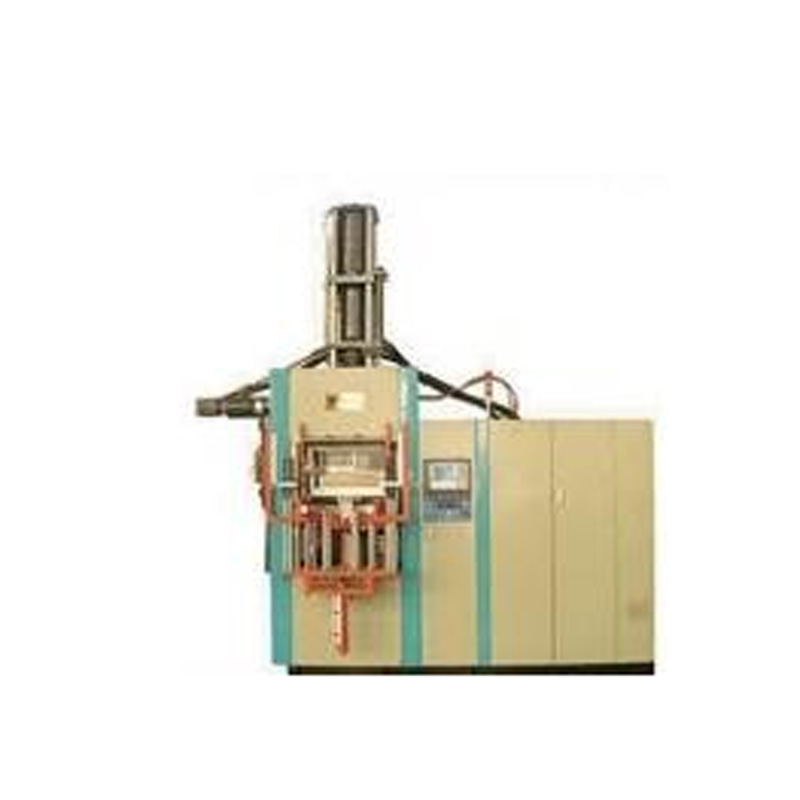

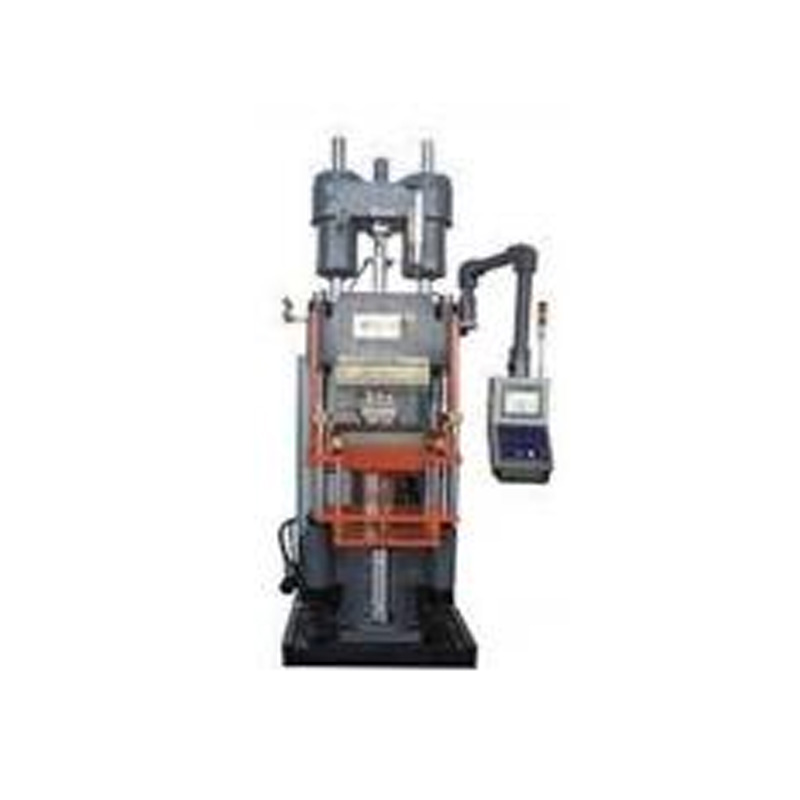

A/E Series Rubber Injection Machine

Machine Features

The A series adopt four-column construction, the tank, clectricity box postpose, the knob placed ago, Suitable for" one person many machine"

The E series adopt four-column construction, the tank, electricity box.

Contact Now E-Mail Telephone

Product Details

Machine Features

The A series adopt four-column construction, the tank, clectricity box postpose, the knob placed ago, Suitable for" one person many machine"

The E series adopt four-column construction, the tank, electricity box.

A/E Series Rubber Injection Machine

型号Size 项目Item	LBZ-100A LBZ-100E	LBZ-160A LBZ-160E	LBZ-200A LBZ-200E	LBZ-300A LBZ-300E	LBZ-400A LBZ-400E	LBZ-550A LBZ-550E	LBZ-650A LBZ-650E
注射容积(cm³) njection volume	1500	1500	2000	3000	4000	5000	6000
锁模力(KN) Cl amping force	1000	1600	2000	3000	4000	5500	6500
热板尺寸(mm) Heating plate dim	450x450	500x500	550x550	700x600	800x700	900x800	1000x900
开模行程(mm) Mould opening stroke	400	450	500	600	600	650	650
最小模厚(mm) Min. mould thickness	60	60	80	160	160	250	250
装机容量(kw) otal power	23	23	30	40	40	60	60
机器尺寸(mm) (长x宽x高) Machine dim (LxWxH)	2.7x1.6x3	2.7x1.6x3.2	3x2.3x4	3.4x2.6x4.5	3.5x2.7x4.6	3.6x2,8x4.8	3.8x2.9x5.2
