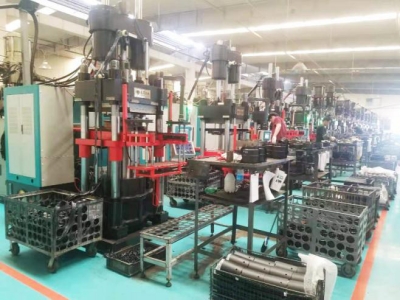

Injection Machines

Injection machines, also known as injection molding machines, are machines used in the manufacturing process called injection molding. These machines are used to produce a wide variety of plastic products by injecting molten plastic into a mold.

Injection machines work by melting plastic pellets and injecting the molten plastic into a closed mold under high pressure. The plastic then cools and solidifies inside the mold, taking the shape of the mold cavity. Once the plastic has fully cooled and solidified, the mold opens and the product is ejected.

Injection machines have different sizes and capacities, depending on the size and complexity of the plastic product being produced. They are typically equipped with hydraulic or electric systems to control the injection process, including the temperature, pressure, and speed of the injection.

Some common applications of injection machines include manufacturing plastic parts for automotive, electronics, consumer goods, and packaging industries. These machines are highly efficient and can produce a large number of identical plastic parts in a short period of time.

It is worth noting that operating an injection machine requires skilled operators who have knowledge of the machine's settings and functions, as well as proper safety procedures.

Contact Now E-Mail Telephone

Product Details

The FIFO injection system uses advanced technology and has the following advantages:

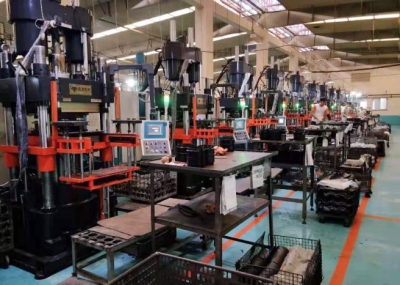

Rubber Injection Machine

Easy cleaning: The FIFO injection unit keeps the compound in place for the same length of time, making cleaning and replacement easy.
Strong flexibility: The rear-mounted design of the fuel tank and electrical box and the rotating operating box are suitable for one person to operate multiple machines, facilitating flexible production.
Stable mold locking: It adopts a direct-pressure two-step mold closing structure, which enables fast mold closing and stable mold locking, protects the mold, and improves production efficiency. The shoulderless design of the guide pillar reduces the stress of the guide pillar, and the quenching and prestressing technology extends the service life of the guide pillar, ensures the parallelism of the template, accurate size, and reduces flash.
Uniform plasticization: The plasticization system allows the rubber material to flow and heat evenly, shortening the vulcanization time.
Hydraulic energy saving: The full-proportional oil circuit system makes the action more flexible and stable, the response is faster and more effective, and it also saves energy consumption. The oil plate without cartridge valve structure is fast and convenient for maintenance.
Advanced electrical control: German Siemens industrial computers and imported brand electrical components are used to realize internal fault self-diagnosis, alarm, and 100 sets of parameter storage. PID computer temperature control is used to ensure uniform and constant mold temperature, and a high-resolution stroke measurement system ensures accurate injection and smooth template movement.
Convenient mold replacement: Equipped with a mold transfer mechanism to facilitate quick mold replacement.
Efficient product mold taking: Equipped with an ejection mechanism to take molds quickly and effectively, reducing labor intensity.
Safety protection: Equipped with infrared electronic eyes to provide effective protection.
Convenient transportation and installation: The height of the machine can be lowered, making the overall transportation and installation very convenient.

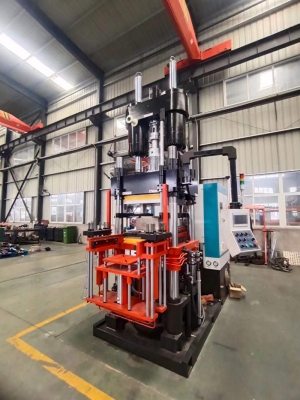

Rubber Injection Machine

Specifications

项目 ltem 型号 Size	LBZ-100A LBZ-100E	LBZ-160A LBZ-160E	LBZ-200A LBZ-200E	LBZ-300A LBZ-300E	LBZ-400A LBZ-400E	LBZ-550A LBZ-550E	LBZ-650A LBZ-650E
注射容积（cm³) Injection volume	1500	1500	2000	3000	4000	5000	6000
锁模力（KN） CI amping force	1000	1600	2000	3000	4000	5500	6500
热板尺寸（mm) Heating plate dim	450x450	500x500	550x550	700x600	800x700	900x800	1000x900
开模行程（mm） Mould opening stroke	400	450	500	600	600	650	650
最小模厚（mm） Min. mould thickness	60	60	80	160	160	250	250
装机容量（kw） Total power	23	23	30	40	40	60	60
机器尺寸(mm) （长×宽×高） Machine dim (LxWxH)	2.7x1.6x3	2.7x1.6x3.2	3x2.3×4	3.4x2.6×4.5	3.5×2.7×4.6	3.6×2.8x4.8	3.8×2.9×5.2
整机重量（Ton） Total weight	4.5	5.5	6.5	10	13	18	23
