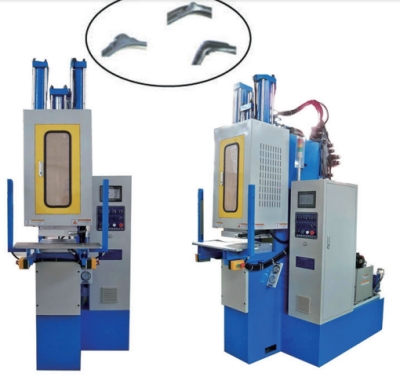

Automotive Door Seal Injection Machine

An automotive door seal injection machine is a specialized type of seal ring injection machine that is specifically designed to manufacture door seals for automobiles. Door seals are crucial components of a vehicle's door system, as they provide a tight seal to prevent water, dust, and noise from entering the cabin.

Contact Now E-Mail Telephone

Product Details

A dedicated automotive door seal injection machine includes the same key components as a general seal ring injection machine, but with specific adaptations and features for the production of automotive door seals:

Injection unit: The injection unit in an automotive door seal injection machine is designed to handle the specific rubber or elastomer materials used for automotive door seals. It may have additional features to ensure precise temperature control and material flow.
Mold or tooling: The mold for automotive door seals is custom-designed to match the specific shape and dimensions of door seals for a particular vehicle model. The mold halves may include additional features for inserts or surface textures that replicate the desired seal profile.
Clamping unit: The clamping unit in an automotive door seal injection machine is configured to handle the size and weight of the larger molds required for producing door seals. It ensures the mold is securely closed during the injection process to maintain accuracy and consistency.
Control system: The control system in an automotive door seal injection machine incorporates specialized programming and settings specific to automotive door seal production. It may include features for multi-cavity molds, automated mold changes, and quality control inspections.

The operation of an automotive door seal injection machine is similar to that of a general seal ring injection machine. The machine heats the rubber or elastomer material to a controlled temperature and injects it into the mold cavity at the desired pressure. After cooling and solidification, the mold is opened, and the finished door seals are ejected and collected for further processing or assembly onto vehicle doors.

Automotive door seal injection machines play a crucial role in the efficient and precise manufacturing of door seals for automobiles. They ensure consistent quality, dimensional accuracy, and durability, meeting the stringent requirements of the automotive industry for vehicle safety, comfort, and noise insulation.

Specifications

型号Size 项目ltem	LBZ-15J	LBZ-30J	LBZ-50J
注射容积（cm³） Injection volume	50	160	300
锁模力（KN） CI amping force	150	300	500
热板尺寸（mm） Heating plate dim	300x300	300x300	450x400
开模行程（mm） Mould opening stroke	250	300	350
最小模厚（mm） Min, mould thickness	60	60	60
装机容量（kw） Total power	13	20	20.5
机器尺寸（mm) (长×宽×高) Machine dim (LxWxH)	1.5×1x2.4	1.8x1x2.7	2x1×2.9
整机重量（Ton） Total weight	2	3	5
