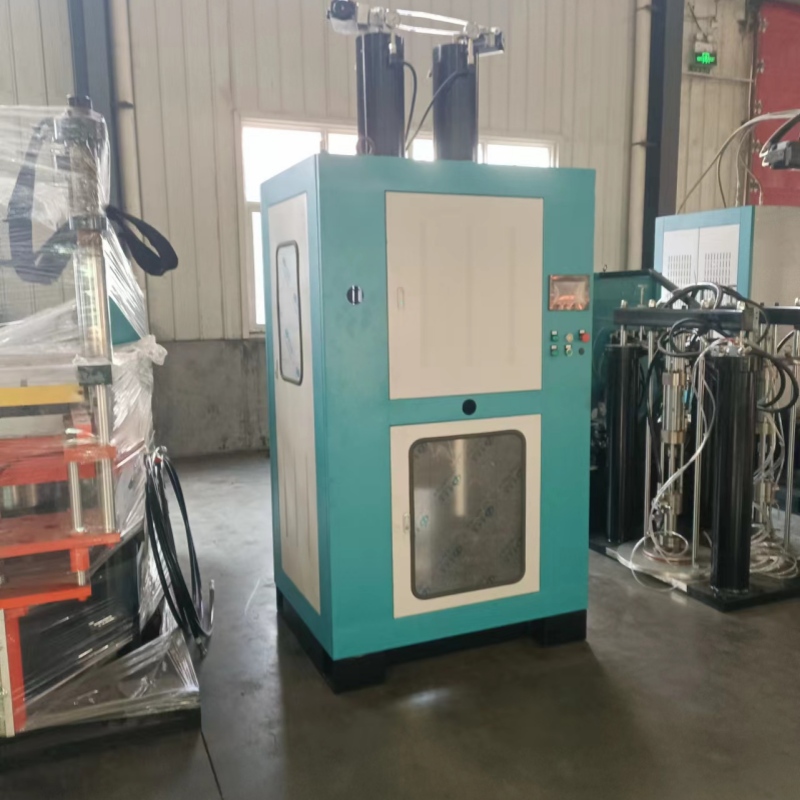

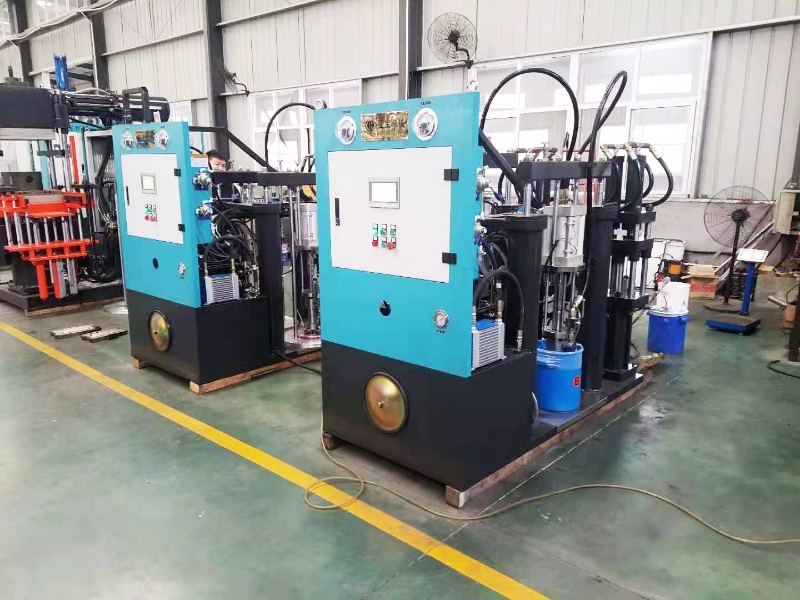

Fully Automatic Rubber Vulcanizing Machine
A fully automatic rubber vulcanizing machine is an advanced piece of equipment used in the rubber manufacturing industry for curing or vulcanizing rubber products. It is designed to streamline the curing process by automating various stages, leading to increased efficiency and productivity.
A fully automatic rubber vulcanizing machine is an advanced piece of equipment used in the rubber manufacturing industry for curing or vulcanizing rubber products. It is designed to streamline the curing process by automating various stages, leading to increased efficiency and productivity.
Some notable features and functions of a fully automatic rubber vulcanizing machine may include:
Automated Loading and Unloading: The machine is equipped with a conveyor system or robotic arm that automatically loads the rubber products into the curing chamber and unloads them after the curing process is complete. This eliminates the need for manual handling and improves overall safety.
PLC Control System: The machine is integrated with a programmable logic controller (PLC) system which allows for precise control and monitoring of various parameters, such as temperature, pressure, curing time, and cycle count. Operators can input their desired parameters and the machine will execute the curing process accordingly.
Heating and Cooling Systems: The vulcanizing machine is equipped with efficient heating elements, such as electric heaters or steam heating, to heat the curing chamber to the desired temperature. It also has a cooling system to rapidly cool down the cured rubber products after the vulcanization process.
Pressure Control Mechanisms: The machine has a sophisticated pressure control system that can accurately adjust and maintain the desired pressure throughout the curing process. This ensures consistent and uniform vulcanization of the rubber products.
Safety Features: Fully automatic rubber vulcanizing machines are designed with various safety features, such as emergency stop buttons, safety interlocks, and alarm systems to ensure operator safety during operation.
It's important to note that specific features and functionalities may vary depending on the manufacturer and model of the fully automatic rubber vulcanizing machine. Operators should carefully follow the machine's operating instructions and safety guidelines to ensure optimal performance and long-term reliability.
型号Size | LBL-50F | LBL-100P | LBL-160P | LBL-200P | LBL-200V | LBL-300V |
锁模力(KN) | 500 | 1000 | 1600 | 2000 | 2000 | 3000 |
热板尺寸(mm) | 400x400 | 450x450 | 500x500 | 550x550 | 500x500 | 600x600 |
开模行程(mm) | 300 | 400 | 450 | 500 | 300 | 250 |
最小模厚(mm) | 60 | 60 | 60 | 60 | 50 | 50 |
装机容量(kw) | 12 | 18 | 20 | 20 | 42 | 51 |
机器尺寸(mm) | 1.4x1x1.7 | 2.1x1.8x2.1 | 2x1.9x 2.4 | 2.2x2x3 | 3.4x2.1x2.5 | 3.4x2.6×2.6 |
机器重量(Ton) | 3 | 4 | 4.5 | 5.5 | 10 | 14 |
