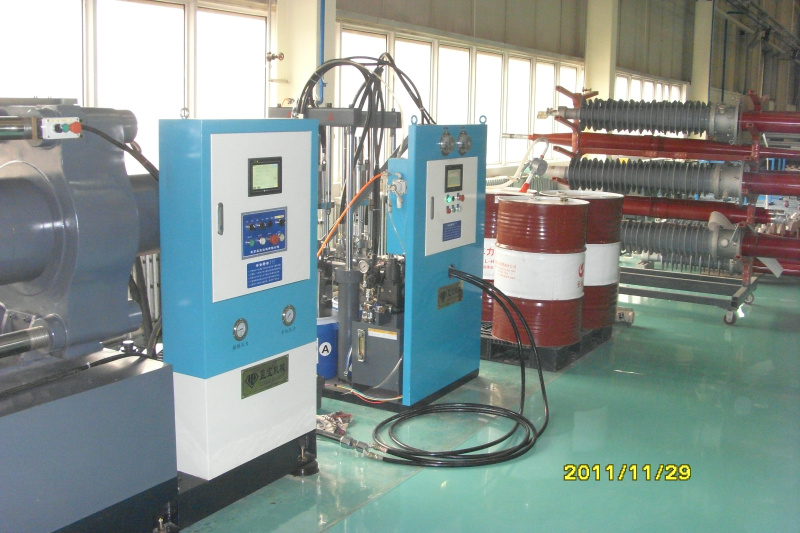

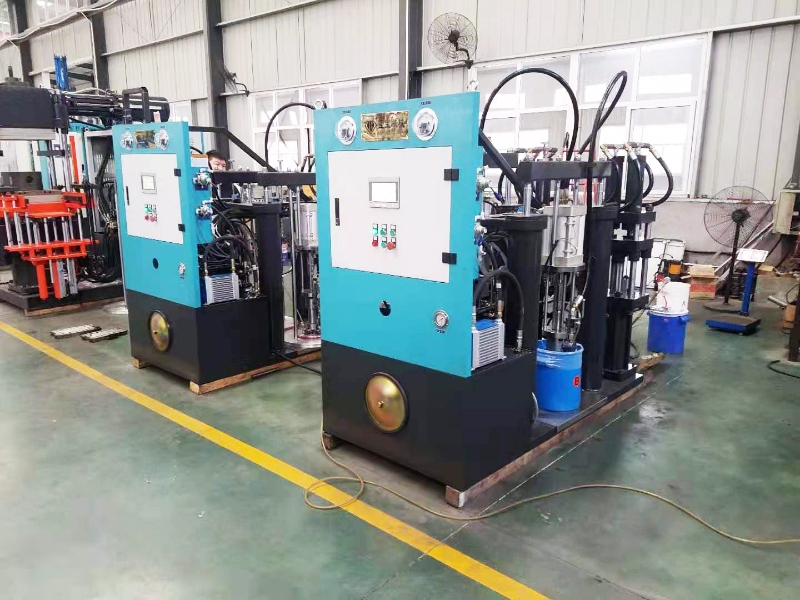

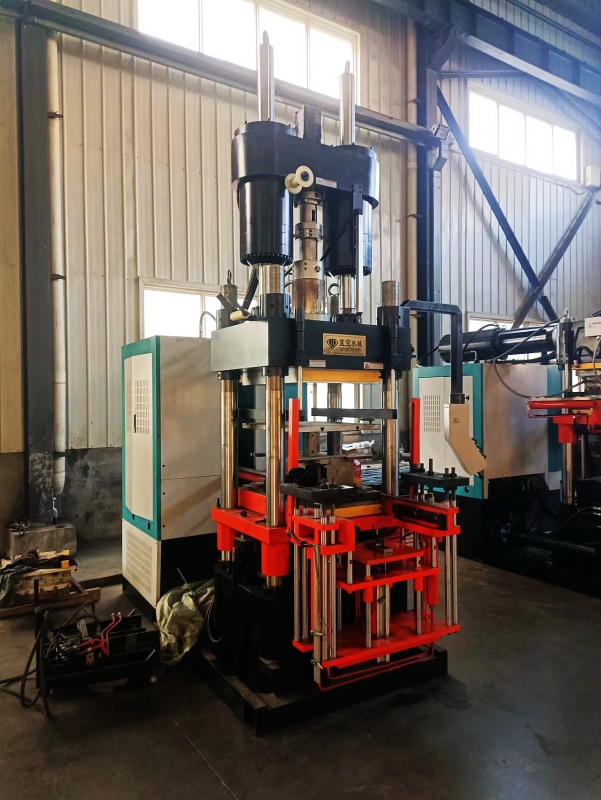

Rubber Molding Machine
A rubber molding machine, also known as a rubber injection molding machine or rubber compression molding machine, is used to shape raw rubber materials into various finished products. This type of machine is commonly used in industries such as automotive, electronics, and consumer goods, where rubber parts are needed.
A rubber molding machine, also known as a rubber injection molding machine or rubber compression molding machine, is used to shape raw rubber materials into various finished products. This type of machine is commonly used in industries such as automotive, electronics, and consumer goods, where rubber parts are needed.
Here are the key components and functions of a rubber molding machine:
Injection System (for rubber injection molding machine): This system includes a barrel and a screw or plunger mechanism that injects the raw rubber material into the mold cavity. The rubber material is typically heated and mixed before injection to achieve proper flow and consistency.
Compression System (for rubber compression molding machine): This system consists of a top and bottom mold plate that compresses the rubber material within the mold cavity. The plates apply pressure to shape the rubber and hold it in place during the curing process.
Heating System: The machine is equipped with a heating system to raise the temperature of the raw rubber material. This heating process makes the rubber more pliable and enables it to flow and conform to the mold cavity shape.
Cooling System: After the rubber material is shaped and cured, the machine initiates a cooling cycle to reduce the temperature. Cooling helps the rubber parts solidify and retain their shape.
Mold Design and Preparation: The machine uses custom-made molds designed for specific products. Molds are typically made of metal and have cavities that define the shape of the rubber parts. The molds are prepared and loaded onto the machine before the molding process begins.
Control System: A rubber molding machine has a control system that regulates various parameters such as temperature, pressure, and cycle time. It ensures that the proper conditions are maintained throughout the molding process for consistent and high-quality results.
型号Size | LBL-50F | LBL-100P | LBL-160P | LBL-200P | LBL-200V | LBL-300V |
锁模力(KN) | 500 | 1000 | 1600 | 2000 | 2000 | 3000 |
热板尺寸(mm) | 400x400 | 450x450 | 500x500 | 550x550 | 500x500 | 600x600 |
开模行程(mm) | 300 | 400 | 450 | 500 | 300 | 250 |
最小模厚(mm) | 60 | 60 | 60 | 60 | 50 | 50 |
装机容量(kw) | 12 | 18 | 20 | 20 | 42 | 51 |
机器尺寸(mm) | 1.4x1x1.7 | 2.1x1.8x2.1 | 2x1.9x 2.4 | 2.2x2x3 | 3.4x2.1x2.5 | 3.4x2.6×2.6 |
机器重量(Ton) | 3 | 4 | 4.5 | 5.5 | 10 | 14 |
The type of rubber molding machine used depends on the specific requirements of the project. Rubber injection molding machines are ideal for complex and detailed parts, while rubber compression molding machines are suitable for simpler shapes and larger sizes.
Overall, a rubber molding machine provides an efficient and automated way to transform raw rubber materials into finished products with high precision and quality.
