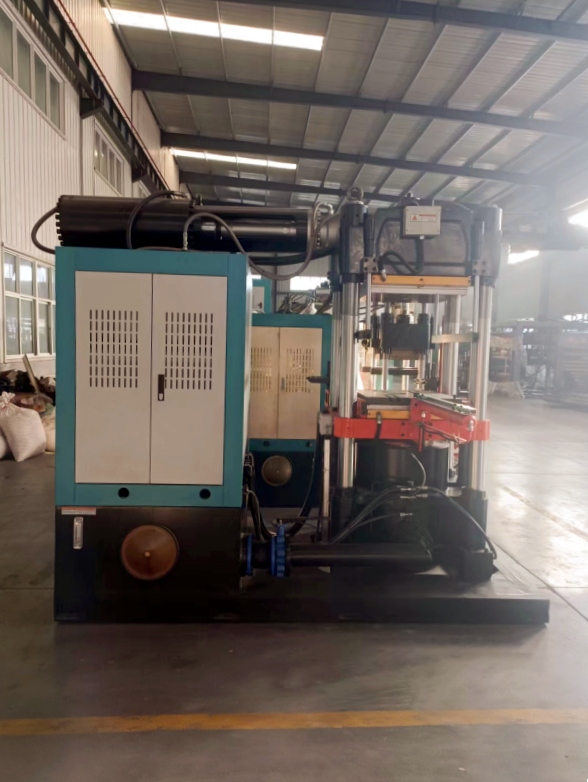

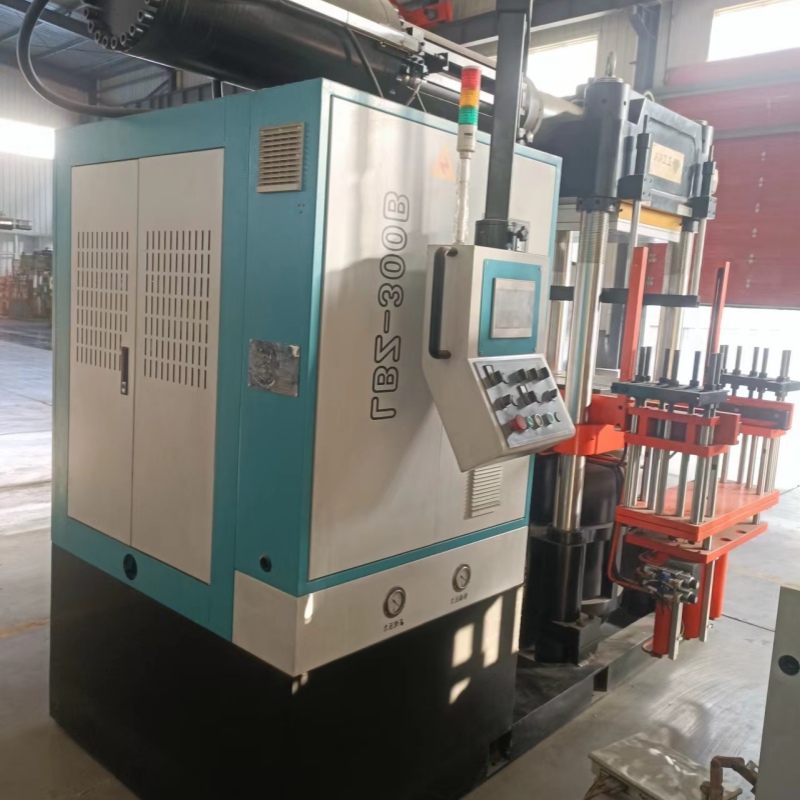

Silicone Vulcanizer
A silicone vulcanizer is a specific type of vulcanizing machine that is designed specifically for curing or vulcanizing silicone rubber. Silicone rubber is a versatile material known for its excellent heat resistance, electrical insulation properties, and durability.
A silicone vulcanizer is a specific type of vulcanizing machine that is designed specifically for curing or vulcanizing silicone rubber. Silicone rubber is a versatile material known for its excellent heat resistance, electrical insulation properties, and durability.
Similar to a vacuum vulcanizing machine, a silicone vulcanizer typically consists of the following components:
Vulcanization Chamber: The chamber is where the silicone rubber products are placed for the curing process. It is designed to withstand high temperatures and pressure to ensure proper curing of the silicone.
Heating System: The machine is equipped with a heating system that raises the temperature inside the vulcanization chamber to the required curing temperature for silicone rubber. The heating process activates the cross-linking reaction, transforming the silicone from a soft, pliable state into a solid, stable form.
Pressure System: The machine applies pressure to the silicone rubber during vulcanization. The pressure helps to compress the silicone, allowing for better cross-linking and eliminating any voids or imperfections in the final product.
Temperature and Pressure Control: The machine has a control system that monitors and regulates the temperature and pressure inside the vulcanization chamber, ensuring that the curing process occurs under the desired conditions.
Cooling System: After the vulcanization process is complete, the machine may have a cooling system that initiates a cooling cycle to safely lower the temperature inside the chamber. This helps to solidify and stabilize the silicone rubber products.
Silicone vulcanizers are commonly used in various industries, including automotive, aerospace, medical, and electrical industries. They offer precise control over the vulcanization process, allowing for the production of high-quality silicone rubber products with specific properties and performance characteristics.
It's important to consult the manufacturer's guidelines and follow proper operating procedures when using a silicone vulcanizer, as the specific settings and curing time may vary depending on the type of silicone rubber being processed and the desired final properties of the cured product.
型号Size | LBL-50F | LBL-100P | LBL-160P | LBL-200P | LBL-200V | LBL-300V |
锁模力(KN) | 500 | 1000 | 1600 | 2000 | 2000 | 3000 |
热板尺寸(mm) | 400x400 | 450x450 | 500x500 | 550x550 | 500x500 | 600x600 |
开模行程(mm) | 300 | 400 | 450 | 500 | 300 | 250 |
最小模厚(mm) | 60 | 60 | 60 | 60 | 50 | 50 |
装机容量(kw) | 12 | 18 | 20 | 20 | 42 | 51 |
机器尺寸(mm) | 1.4x1x1.7 | 2.1x1.8x2.1 | 2x1.9x 2.4 | 2.2x2x3 | 3.4x2.1x2.5 | 3.4x2.6×2.6 |
机器重量(Ton) | 3 | 4 | 4.5 | 5.5 | 10 | 14 |
