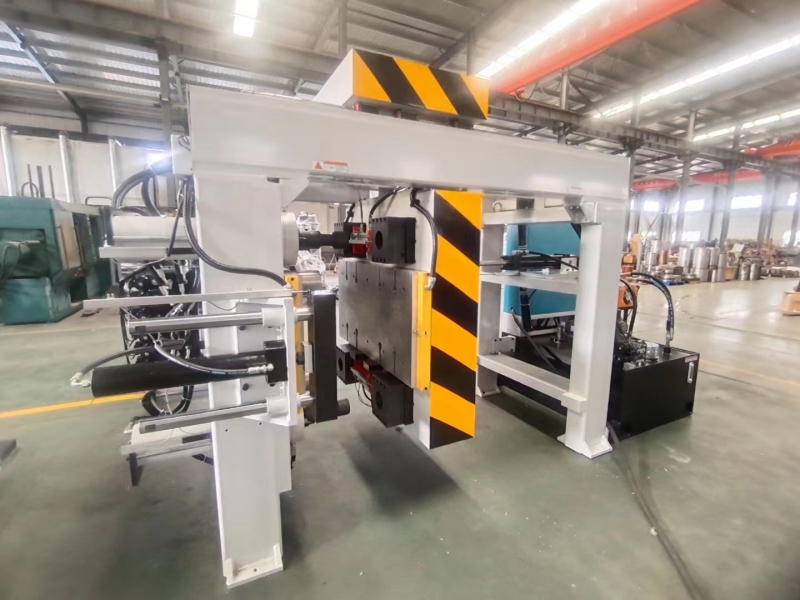

Lightning Arrester Injection Machine

A lightning arrester injection machine is a machine used to manufacture lightning arresters. It uses an injection molding process to inject molten material into the mold of the arrester, and then cools and solidifies the material to finally form the shell of the arrester.

A lightning arrester injection machine usually consists of an injection molding unit, a mold system, a cooling system and a control system. The injection molding unit is responsible for heating, melting and injecting material into the mold. The mold system is the mold used to manufacture the arrester, usually made of metal materials. The cooling system is used to cool and solidify the injection molding material. The control system manages the operation of the machine, including temperature control, injection pressure control, injection cycle control, etc.

Contact Now E-Mail Telephone

Product Details

Some key features of arrester injection machines include:

High Precision and Repeatability: The machine has precise injection molding capabilities to maintain consistent arrester dimensions.
Efficient production: This machine can efficiently manufacture a large number of arresters and improve production efficiency.
Versatility: This machine can manufacture arresters of different sizes and shapes as required.
Automation and control: The machine is equipped with advanced automation and control system, which enables automated operation and monitoring.
Safety features: The machine is equipped with multiple safety measures such as safety door switches, emergency stop buttons and guards to ensure operator safety.

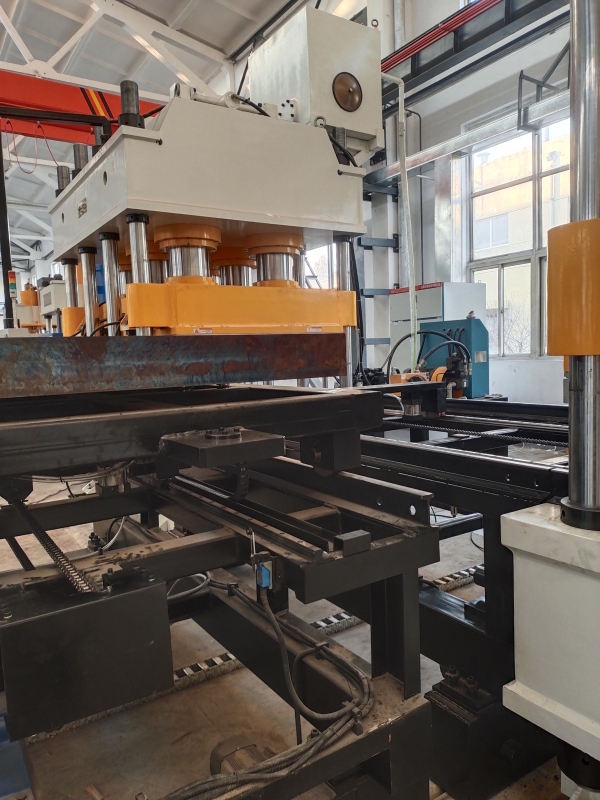

Lightning Arrester Injection Machine

In general, the arrester injection machine is a key machine equipment used to produce the casing of the arrester. It can efficiently and accurately manufacture arresters of various sizes and shapes to meet the production needs of arresters.

型号Size 项目ltem	LBL-100F	LBL-200F	LBL-350F	LBL-450F
锁模力（KN） CI amping force	1000	2000	3500	4500
热板尺寸（mm） Heating plate dim	1200x600	1600x800	1800x800	2600x1250
开模行程（mm） Mould opening stroke	1000	1000	1300	2000
最小模厚（mm) Min, mould thickness	300	300	300	500
装机容量（kw） Total power	32	60	67	100
机器尺寸（mm） (长×宽×高） Machine dim (LxWxH)	4.5x2.1x2.1	5×2.4x2.7	5.8×2.6x3	8×4.2x3.5
整机重量（Ton) lTotal weight	6	12	16	26
