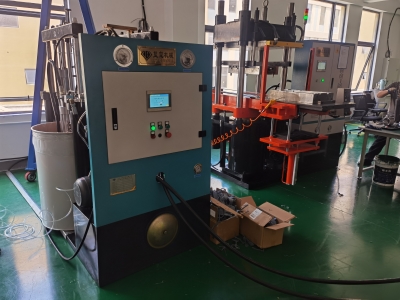

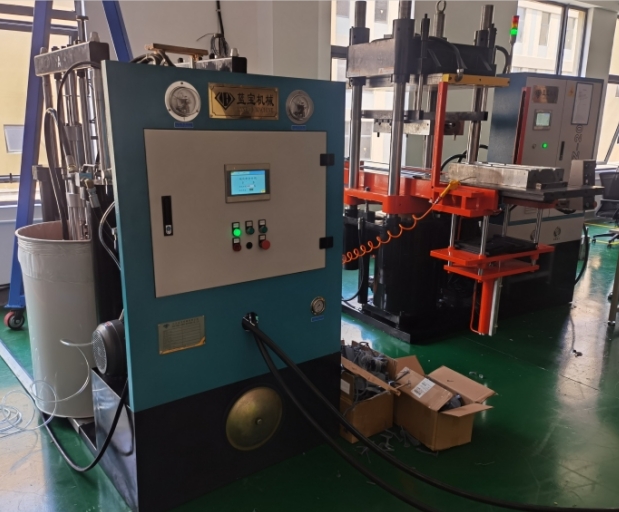

Silicone Rubber Injection Machine Mold
Silicone rubber injection machine molds are used in industries where silicone rubber products are needed, such as automotive, electronics, medical, and consumer goods. The molds are designed to withstand the high temperatures and pressures associated with the silicone rubber injection molding process and are crucial in producing high-quality silicone rubber parts with complex shapes and fine details.
A silicone rubber injection machine mold is a specific type of mold used in silicone rubber injection molding machines. Silicone rubber injection molding is a manufacturing process used to produce parts or products made from silicone rubber materials.
Here's a general overview of how a silicone rubber injection machine mold works:
Mold design: The first step in the process is to design the mold that will be used in the silicone rubber injection machine. The mold is typically made from high-grade steel, and its design will depend on the specific shape and requirements of the product being manufactured.
Mold preparation: Once the mold design is finalized, the mold is fabricated or machined according to the specifications. This includes cutting, carving, and polishing the mold surfaces to achieve the desired shape and finish.
Mold installation: The prepared mold is then installed into the silicone rubber injection machine. This involves mounting the mold into the machine's clamping system and aligning it properly.
Silicone rubber preparation: The silicone rubber material is prepared by mixing the base silicone compound with additional additives, such as curing agents, colorants, or fillers. The mixture is thoroughly homogenized in a mixing chamber or kneader to achieve a consistent and uniform blend.
Injection process: The silicone rubber material is then injected into the mold cavity through an injection nozzle or sprue. The injection can be done at high pressure or low pressure, depending on the specific requirements of the silicone part being created. The silicone rubber fills the mold cavity and takes the shape of the mold.
Curing and cooling: Once the silicone rubber is injected into the mold, it undergoes a curing process. This can be done through heat or other curing methods, such as UV curing or chemical curing. The curing process allows the silicone rubber to solidify and take on the desired physical properties. After the curing stage, the mold is allowed to cool down, which further aids in the solidification of the silicone rubber.
Ejection: After the silicone rubber has fully cured and cooled, the mold is opened, and the finished silicone part is ejected from the mold cavity. Ejection can be facilitated by mechanical systems, such as ejector pins or air blasts, which help in releasing the part from the mold surfaces without causing any damage.
型号Size | LBP-20L | LBP-200L | LBG-4L | LBG-6L | LBG-10L | LBG-20L | LBG-40L |
注射容积((L) | 无 | 无 | 4 | 6 | 10 | 20 | 40 |
胶料输出压(Mpa) | 0-25 | 0-25 | 0-25 | 0-25 | 0-25 | 0-25 | 0-25 |
胶料输出速度 | 0-2 | 0-4 | 0-6 | 0-6 | 0-6 | 0-6 | 0-6 |
料简容积(L) | 20 | 200/20 | 200/20 | 200/20 | 200/20 | 200/20 | 200/20 |
料筒内径(mm) | 280 | 571.5/280 | 571.5/280 | 571.5/280 | 571.5/280 | 571.5/280 | 571.5/280 |
装机容量(kw) | 3 | 3 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 |
机器尺寸(mm) | 1.1x0.8x1.7 | 1.6x1.4x1.8 | 2.2x1x2.3 | 2.7x1.5x2.3 | 2.7x1.3x2.7 | 1.9x1.3x3 | 3.1x1.5×3.4 |
机器重量(Ton) | 1 | 1.5 | 2.5 | 3 | 3.5 | 4 | 5 |
