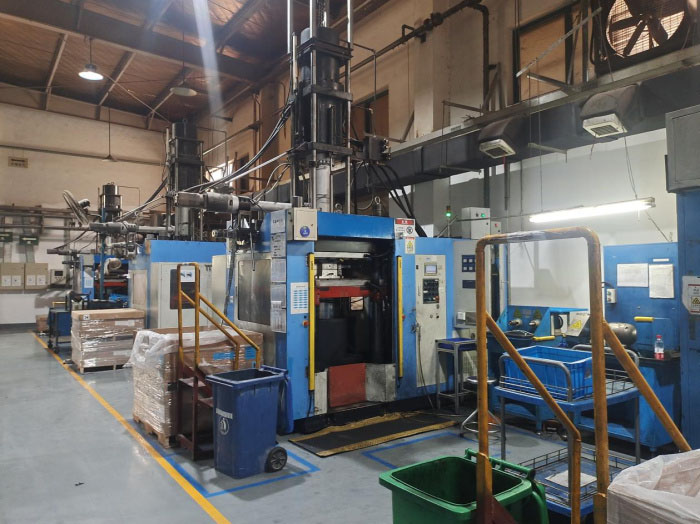

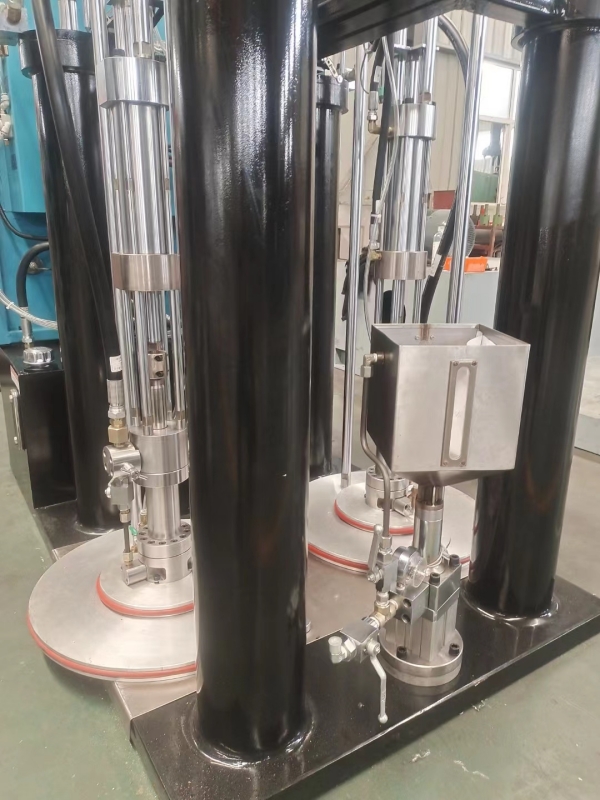

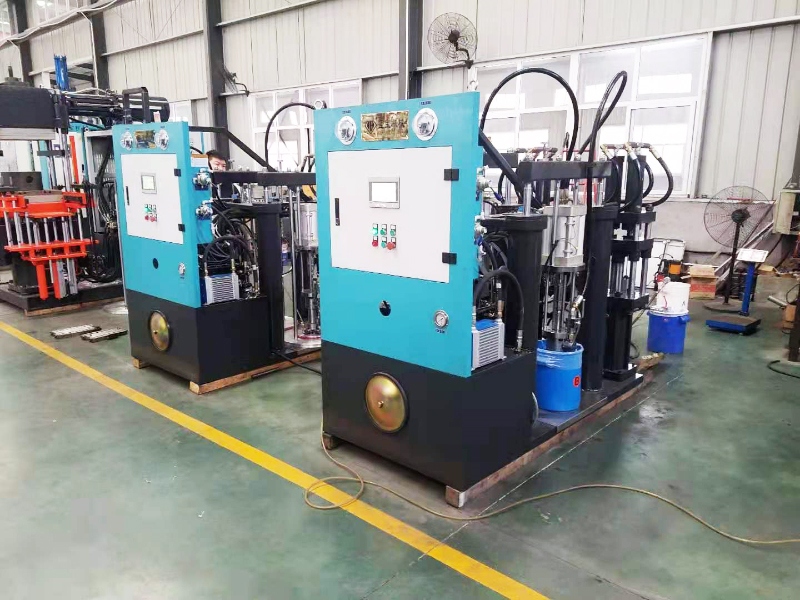

Vertical Liquid Silicone Pump Feeder

A liquid silicone molding machine, also known as a liquid silicone rubber (LSR) injection molding machine, is used for the manufacturing of silicone products. It is specifically designed to inject liquid silicone material into a mold to form the desired shape and size of the silicone product.

Contact Now E-Mail Telephone
Product Details

The process of liquid silicone molding involves several key steps:

Liquid silicone molding machine

  1. Preparation: The liquid silicone material is prepared by mixing the base silicone compound with a catalyst to initiate the curing process. This mixture is then loaded into the machine's barrel.

  2. Mold preparation: The mold is prepared by cleaning and applying a release agent to ensure easy removal of the finished silicone product. The mold is then mounted onto the liquid silicone molding machine.

  3. Injection: The liquid silicone material is injected into the mold cavity using a specialized injection system. The machine's injection unit includes a screw or plunger mechanism that pushes the liquid silicone material into the mold at a controlled rate.

  4. Curing: Once the mold is filled with the liquid silicone, the silicone product is cured or vulcanized. This process involves subjecting the mold to heat to accelerate the curing reaction. The temperature and time required for curing depend on the specific silicone material and desired properties of the final product.

  5. Cooling and release: After the silicone product has been cured, it is cooled down to a suitable temperature for removal. The mold is then opened, and the finished silicone product is released from the mold.

Liquid silicone molding machines offer precise control over the injection process, ensuring the production of high-quality silicone products with consistent dimensions and properties. These machines are widely used in various industries such as medical, automotive, electronics, and consumer goods, where silicone materials are valued for their flexibility, durability, and heat resistance.

型号Size
项目ltem

LBP-20L

LBP-200L

LBG-4L

LBG-6L

LBG-10L

LBG-20L

LBG-40L

注射容积(L)
Injection volume

4

6

10

20

40

胶料输出压(Mpa)
Materialoutput
pressure

0-25

0-25

0-25

0-25

0-25

0-25

0-25

胶料输出速度
(L/min)
Average material
output

0-2

0-4

0-6

0-6

0-6

0-6

0-6

科筒容积(L
The mater ial drum
volume

20

200/20

200/20

200/20

200/20

200/20

200/20

料简内径(mm
The mater ial drum
diameter

280

571.5/280

571.5/280

571.5/280

571.5/280

571.5/280

571.5/280

装机容量(kw
Total power

3

3

4.5

4.5

4.5

4.5

4.5

机器尺寸(mm
(长×x高)
Machine dim
(LxWxH)

1.1x0.8x1.7

1.6x1.4x1.8

2.2x1x2.3

2.7x1.5x2.3

2.7x1.3x2.7

1.9x1.3x3

3.1x1.5×3.4

机器重量(Ton)
Total weight

1

1.5

2.5

3

3.5

4

5
