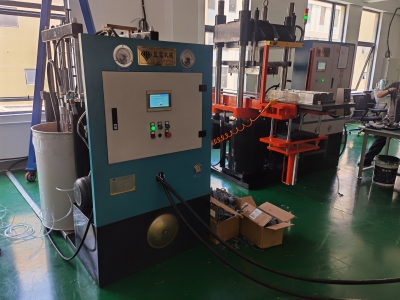

Silicone Rubber Injection Machine

A silicone rubber injection machine, also known as a silicone injection molding machine, is a specialized machine used for the production of silicone rubber products through the injection molding process.

Silicone rubber injection machines are designed to handle the unique properties of silicone rubber, which include its low viscosity, high elasticity, and temperature sensitivity. These machines are specifically built to provide precise temperature control, high-pressure injection, and efficient curing of silicone rubber materials.

The key components of a silicone rubber injection machine include:

1. Injection Unit: This unit consists of a screw or plunger mechanism that melts the silicone rubber material and injects it into the mold cavity. It ensures that the material is properly mixed and homogenized before injection.

2. Transfer Unit: The transfer system transfers the silicone rubber material from the injection unit to the mold. It can be a piston or hydraulic system that controls the movement of the material.

3. Heating and Curing System: This system provides precise temperature control and applies heat and pressure to the mold in order to cure the silicone rubber material. Silicone rubber has a lower curing temperature and longer curing time compared to other rubber materials, so the heating and curing system is designed accordingly.

4. Clamping Unit: The clamping unit holds the mold in place during the injection and curing process. It applies sufficient force to keep the mold closed and prevent any material leakage.

5. Control System: The control system monitors and controls various parameters, such as temperature, pressure, and curing time. It allows the operator to set and adjust these parameters to ensure optimal molding conditions.

Silicone rubber injection machines are widely used in various industries, including automotive, electronics, medical, and consumer goods. They can produce a wide range of silicone rubber products, such as seals, gaskets, O-rings, keypads, and other components with high precision and quality.
